Voltage Regulator Diode MM1Z16B: Precision Regulation to Safeguard Circuit Stability

Voltage Regulator Diode MM1Z16B: Precision Regulation to Safeguard Circuit Stability

In the complex and ever-changing world of electronics, the voltage regulator diode serves as a guardian of circuits. With its unique voltage regulation capabilities, it ensures stable output, protecting every component within the circuit. Today, we will explore a highly favored voltage regulator diode—the MM1Z16B—delving into its key specifications and critical role in circuit design.



I. Core Specifications of MM1Z16B



The MM1Z16B stands out with its precise voltage regulation capabilities, featuring the following core specifications:



Nominal Voltage Regulation: 16V. This means that under normal operating conditions, the MM1Z16B can reliably maintain the voltage around 16V, providing a stable voltage environment for the circuit.



Voltage Regulation Range: 15.85V-16.51V. This wide regulation range allows the MM1Z16B to accommodate various circuit requirements, ensuring voltage fluctuations remain within the specified limits, enhancing the circuit's adaptability and stability.

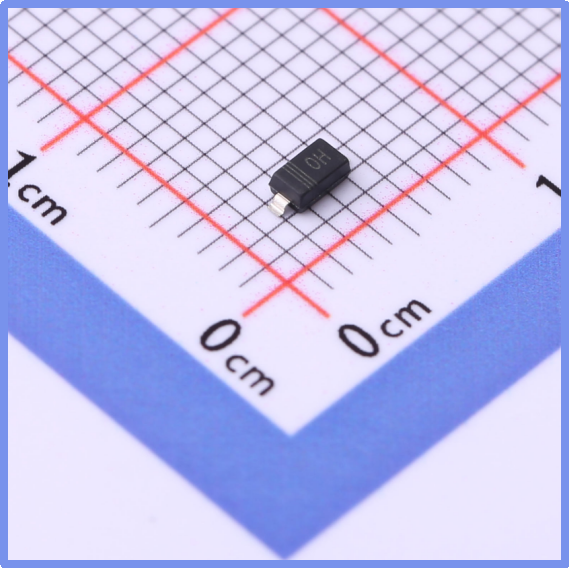

Slkor Voltage Regulator Diode MMBZ5243B product photo

Power Rating: 500mW. This power specification ensures that the MM1Z16B can operate stably even in high-power circuits, providing continuous voltage protection without the risk of overheating.

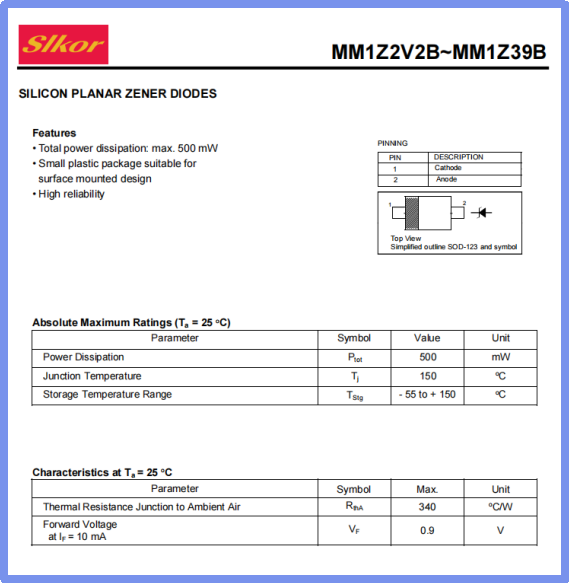

Slkor Voltage Regulator Diode MMBZ5243B specification

Reverse Current (Ir): 0.1μA. The extremely low reverse current indicates that the MM1Z16B conducts almost no electricity under reverse voltage, effectively preventing current leakage and ensuring circuit safety and stability.

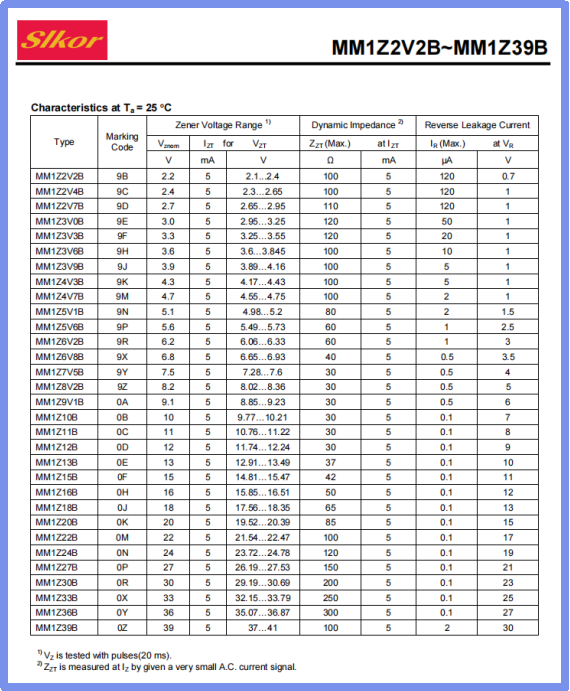

Parameters of Slkor Voltage Regulator Diode MMBZ5243B

II. Performance Characteristics of MM1Z16B



Precise Voltage Regulation: The MM1Z16B provides a stable voltage environment with its accurate regulation, ensuring the proper functioning of other components in the circuit.



High Reliability: The very low reverse current and broad regulation range make the MM1Z16B highly reliable, effectively preventing failures due to voltage fluctuations.



Efficient Heat Dissipation: With a power rating of 500mW, the MM1Z16B maintains good heat dissipation in high-power circuits, ensuring long-term stable operation.



III. How Voltage Regulator Diodes Improve Energy Conversion Efficiency through Optimized Circuit Design



Voltage regulator diodes play a crucial role in enhancing energy conversion efficiency, largely depending on optimized circuit design. To understand this process better, we need to analyze how effective circuit design can maximize their performance.



Characteristics of Voltage Regulator Diodes



● Breakdown Voltage: This is the voltage at which the voltage regulator diode begins to conduct and limit the voltage. Choosing the appropriate breakdown voltage is essential for protecting the circuit and ensuring voltage stability.



● Regulation Range: Near the breakdown voltage, the voltage regulator diode can maintain voltage within a relatively stable range. The wider this range, the more versatile the diode is.



● Power Consumption: The voltage regulator diode generates some power consumption during operation, which needs to be considered in circuit design to prevent overheating.



Optimizing Circuit Design to Improve Energy Conversion Efficiency



● selecting the Right Voltage Regulator Diode: Choose a diode with the appropriate breakdown voltage, regulation range, and power consumption according to the circuit's needs. This helps ensure stable operation across a wide voltage range, thereby enhancing energy conversion efficiency.



● Thoughtful Layout and Heat Dissipation Design: In circuit design, ensure that the voltage regulator diode is positioned for optimal heat dissipation. Using heatsinks, fans, and other cooling measures can help reduce the diode’s operating temperature, improving its efficiency and reliability.



● Leveraging the Characteristics of Voltage Regulator Diodes in Circuit Design: Design circuits with automatic voltage regulation and over-voltage protection features by combining the diode with resistors, capacitors, and other components. This ensures that the circuit can function normally under abnormal voltage conditions.



● Considering Overall Circuit Efficiency: When optimizing circuit design, consider not only the performance of the voltage regulator diode but also the overall efficiency of the circuit. By thoughtfully selecting components, optimizing circuit structure, and reducing power consumption, the overall energy conversion efficiency of the circuit can be enhanced.
