In the semiconductor industry, the performance and stability of electronic devices are closely dependent on reliable circuit protection. Today, we introduce the SMBJ6.0CA, a bidirectional transient voltage suppression diode, which stands out for its excellent electrical parameters, making it a powerful tool for circuit protection.



Bidirectional Polarity: Comprehensive Circuit Protection



The bidirectional polarity design is a standout feature of this diode. In complex semiconductor circuits, voltage fluctuations can occur in unpredictable directions, and both forward and reverse transient voltage surges can damage the circuit. The bidirectional nature of this diode acts as a keen guardian, responding rapidly to any sudden increase in voltage, regardless of polarity, and triggering the protection mechanism to provide all-around, seamless*for the circuit. Whether in densely integrated chip circuits or long-distance signal transmission lines, it efficiently handles various voltage anomalies, ensuring the stable operation of the circuit.

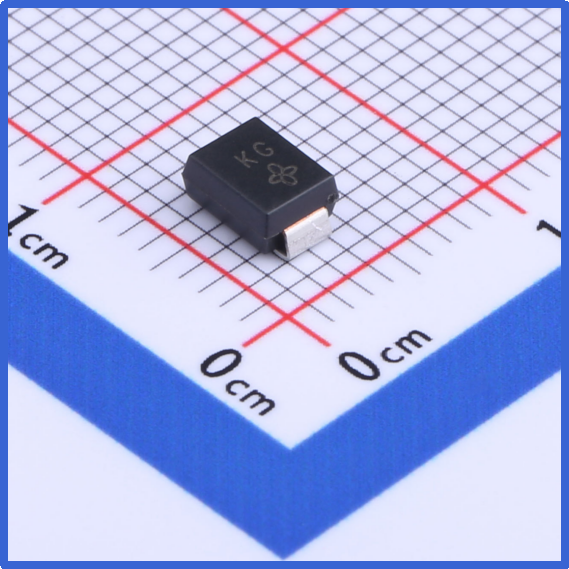

Slkor Transient Protection Diode SMBJ6.0CA product photo

Precise Voltage Parameters: Ensuring Stability and Safety



1. Reverse Working Voltage (Vrwm): The Foundation of Stable Operation

The reverse working voltage is set at 6V, which is crucial for the stable operation of the circuit. When the circuit voltage is within the normal range (below 6V), the diode remains in a high-resistance state, essentially invisible to the circuit and having minimal impact on its normal operation. This allows the circuit to run efficiently and stably, without extra energy loss or signal interference from the protection component.

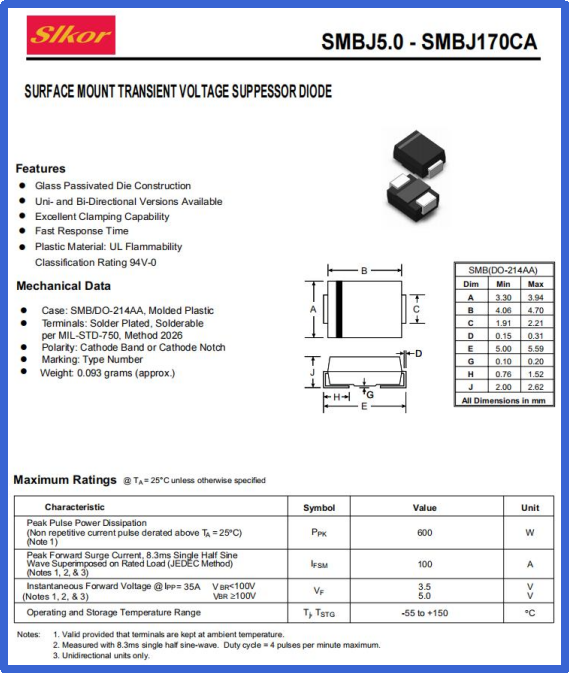

Slkor Transient Protection Diode SMBJ6.0CA specification

2. Breakdown Voltage: Precision-Triggered Protection Switch

The breakdown voltage range is set between 6.67V and 7.67V, a precise setting that plays a crucial role. On one hand, it leaves enough room for voltage fluctuations during normal operation, effectively preventing false triggers of the protection mechanism due to slight voltage variations, ensuring stable circuit operation. On the other hand, when transient overvoltage exceeds this range, the diode swiftly enters breakdown mode, limiting the excessive voltage to a safe level, acting as a precisely triggered protection switch to safeguard sensitive downstream components from high-voltage shocks.

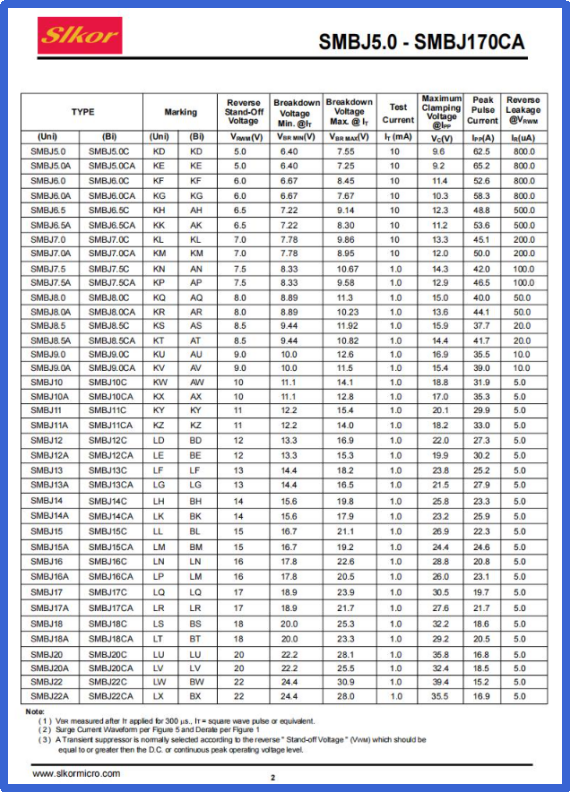

Parameters of Slkor Transient Protection Diode SMBJ6.0CA

Reverse Leakage Current: A Balanced Characteristic



The reverse leakage current is 800μA, which is slightly higher compared to some low-leakage products. However, this is the result of a balanced performance trade-off. In applications where power consumption is not the most critical factor, but protection performance and cost-effectiveness are prioritized, this diode still offers significant advantages. It provides effective circuit protection while meeting specific application needs in terms of cost and space.



Strong Pulse Endurance: Defending Against Transient Surges



1. Peak Pulse Current (Ipp) and Maximum Clamping Voltage: Solid Protection Barrier

Under the standard 10/1000μs test waveform, the diode can withstand peak pulse currents up to 58.3A and maintain the maximum clamping voltage at 10.3V. When the circuit encounters intense transient voltage surges from lightning strikes, switching operations, or other sudden events, it responds quickly, using its robust current-handling capacity to dissipate the excess energy while accurately clamping the voltage within a safe range, protecting downstream electronic components from high-voltage damage. This powerful transient surge protection makes it a solid barrier against transient shocks.



2. Peak Pulse Power (Ppp): Continuous and Stable Energy Shield

With a peak pulse power rating of 600W, this diode demonstrates its strong energy absorption capacity. In the face of frequent transient overvoltage surges, it acts as an indestructible energy shield, continuously converting and dissipating excessive energy, ensuring reliable protection over long periods and under high-load operating conditions without failure due to overheating, thereby maintaining the circuit's safety.



In the semiconductor industry’s ongoing pursuit of high performance and reliability, this bidirectional transient voltage suppression diode stands out with its unique bidirectional protection capability, precise voltage control, and strong pulse endurance. It plays an essential role in numerous applications, including consumer electronics, industrial control, and automotive electronics. Choosing this diode means selecting reliable quality assurance for your semiconductor products, helping them stand out in a competitive market. Let us move forward together and leverage this excellent circuit protection component to propel the semiconductor industry toward a more brilliant future.
