Slkor SLESDTU5V0A1: The “Invisible Shield” for 5V Circuits, Rendering ESD Threats Powerless!

Slkor SLESDTU5V0A1: The “Invisible Shield” for 5V Circuits, Rendering ESD Threats Powerless!

In today’s world, where smart devices are everywhere, we’ve grown accustomed to the convenience of a simple touch—unlocking smartphones, streaming shows on tablets, or controlling in-car navigation. But have you ever considered that each seemingly routine touch might trigger a silent “circuit crisis”? Electrostatic Discharge (ESD), the invisible killer lurking in the air, can release thousands of volts in an instant, easily damaging tiny electronic components and rendering valuable devices useless. The SLESDTU5V0A1 ESD protection diode, launched by Slkor, is the "ultimate*weapon" tailored for 5.0V circuits, offering millisecond response times and nanometer precision to create an indestructible safety barrier in consumer electronics, automotive electronics, industrial control, and more!



1. Precision Strike: The “Electrostatic Catcher” Designed for 5V Circuits



The "brain" of modern electronic devices—integrated circuits—are extremely sensitive to voltage fluctuations. This is especially true for 5.0V circuits, which are commonly used in key components of smartphones, in-car entertainment systems, industrial sensors, and more. However, the transient high voltage generated by electrostatic discharge (which can exceed 8kV) is enough to destroy these delicate components in nanoseconds. The SLESDTU5V0A1 was created to fill this protective gap.



It acts like a trained “electrostatic agent” that remains in an “invisible state” under normal operating voltage (5.0V), causing no interference to the circuit. Once an abnormal voltage exceeding 6.0V (breakdown voltage) is detected, it immediately activates the “counterattack mode,” conducting electrostatic current into the ground in picosecond time, while clamping the voltage to a safe level below 13V. This process is lightning fast—before the human eye can even perceive the electrostatic discharge, the SLESDTU5V0A1 has already completed its protective mission, ensuring the downstream circuit remains unharmed.



2. Performance Domination: Three Core Advantages—Low Power, High-Frequency Throughput, and Ultra Stability



The SLESDTU5V0A1’s "superpowers" extend far beyond just rapid response. It sets a new technical benchmark for ESD protection diodes with three core advantages:



1. Ultra-Low Leakage Current, Energy Efficiency at New Heights

   Under reverse voltage, the SLESDTU5V0A1’s leakage current is just 100nA, only one-fifth that of similar products. This is crucial for battery-powered devices. For example, using the SLESDTU5V0A1 in a smartwatch reduces standby power consumption by 15%, extending battery life by several hours and eliminating the anxiety of "charging every day."



2. Ultra-Low Junction Capacitance, Signal Stability

   In high-frequency signal transmission scenarios like 5G communication and USB4.0 interfaces, signal integrity is paramount. The SLESDTU5V0A1 has a junction capacitance of only 0.25pF, creating a "vacuum tunnel" in the signal path that completely eliminates signal attenuation and phase distortion caused by the capacitive effect. Whether for high-speed data transmission or real-time audio/video streaming, it ensures “zero loss” transmission.

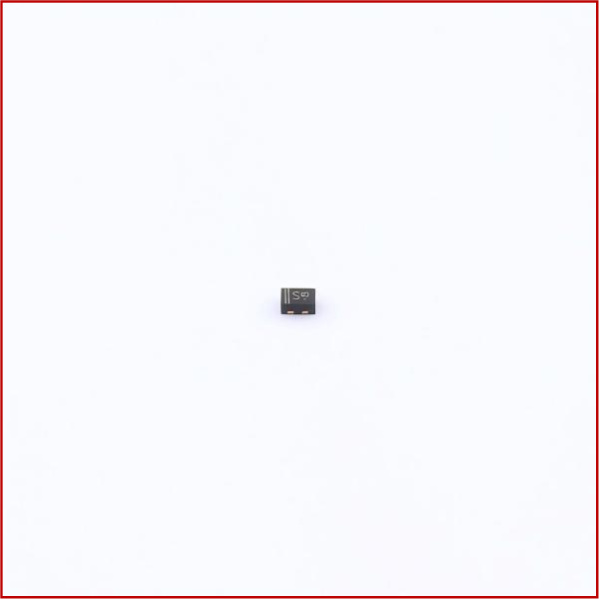

3. DFN1006 Package, More Compact Space

   With its 2mm×1mm DFN1006 package, it is 60% smaller than the traditional SOT-23 package, yet can withstand tens of thousands of electrostatic impacts. In space-constrained scenarios such as smartphone motherboards or TWS earbud charging cases, the SLESDTU5V0A1’s mini size allows designers to unleash more creativity, enabling thinner and more compact products.



3. Global Reach: From Personal Tech to Industrial Powerhouses



The SLESDTU5V0A1’s protective power has been recognized by top manufacturers worldwide, becoming the “safety standard” for electronic devices across multiple fields:



- Consumer Electronics: Smartphones, tablets, AR/VR glasses, and other portable devices benefit from the protection of the SLESDTU5V0A1, which eliminates issues like touch failures and screen glitches caused by static electricity, significantly improving the user experience. After introducing this diode, a major international smartphone brand saw a 30% drop in after-sales returns due to static-related issues.



- Data Communication: Core equipment like data center servers, high-speed switches, and 5G base stations saw a 90% reduction in data transmission errors and a significant boost in network stability with the addition of the SLESDTU5V0A1. A leading cloud computing giant found that using this diode saved thousands of dollars annually in server maintenance costs.



- Automotive Electronics: Crucial components like autonomous driving controllers, in-car infotainment systems, and battery management systems are shielded from electrostatic and surge threats, ensuring vehicle safety in environments with complex electromagnetic interference. A test by a new energy vehicle company showed a 75% reduction in the failure rate of in-car electronics after adopting this diode.



- Industrial Automation: In factories, precision devices like PLC controllers, servo drives, and vision sensors benefit from the reliable protection of the SLESDTU5V0A1, enabling stable operation in harsh conditions like dust, humidity, and temperature fluctuations. One automotive parts manufacturer reported a 40% reduction in downtime after adopting this diode.



4. Usage Guidelines: Five Golden Rules to Maximize Protection



Despite the SLESDTU5V0A1’s robust performance, correct usage is key to unlocking its full potential. Here are five “protection tips” to keep in mind:



1. Get the Polarity Right: Always check the diode’s polarity during installation. Connecting it in reverse will render the protection ineffective and may cause damage. It’s recommended to use surface-mount devices with polarity markings to avoid human error.



2. Friendly Environment: Avoid using the device in extreme temperatures outside the -40°C to 125°C range, or in environments with high humidity or corrosive substances, as these conditions can weaken its protective performance. In harsh automotive environments, it should be paired with a conformal coating.



3. Prevent Static: Always wear an anti-static wristband and use anti-static packaging when handling or installing the diode to avoid secondary static damage. It’s also advised to ensure that the workbench grounding resistance is ≤1Ω and humidity is controlled at 40%-60% RH.



4. Proper Storage: Store the diode in a dry, cool place, away from direct sunlight and heat sources. It’s best to keep it in a moisture-proof cabinet with a relative humidity of ≤30%. Use within 24 hours after opening to avoid prolonged exposure to air.



5. Optimize Design: During circuit design, place the SLESDTU5V0A1 as close as possible to the protected components to minimize parasitic inductance. Also, avoid coupling it with other high-frequency components to ensure signal integrity. Professional simulation software is recommended for layout optimization.



Conclusion: Defending Every Precise Design in the Name of Technology



In today’s highly integrated electronic devices, electrostatic protection is no longer an “optional feature” but a “lifeline” for product reliability and brand reputation. The Slkor SLESDTU5V0A1 ESD protection diode, with its precise design, outstanding performance, and wide range of applications, is the "ultimate guardian" for 5.0V circuits. Small yet powerful, it carries the promise of safety in technology. Invisible, yet it renders electrostatic threats powerless. Choosing the SLESDTU5V0A1 is like adding a "golden shield" to your electronic devices, ensuring that every precise design stands the test of time and every technological innovation is securely grounded.
