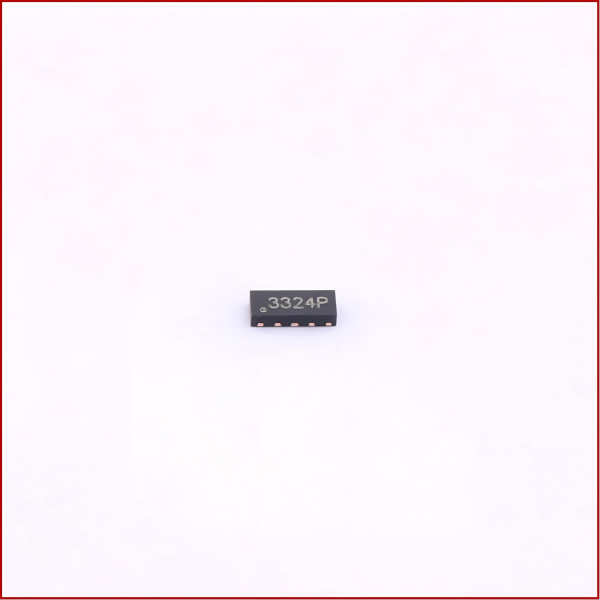

SLESD3324P ESD Protection Diode: A Robust Static Shield for Precision Electronics

In today’s world of highly integrated and miniaturized electronic devices, electrostatic discharge (ESD) has become a major invisible threat to the safety of delicate circuits. Whether it's smartphones, medical instruments, or IoT devices, static shocks can lead to performance degradation or even permanent damage. The SLESD3324P ESD protection diode, launched by Sako Micro (slkor), offers a highly efficient and reliable static protection solution for low-voltage, high-sensitivity electronic devices, thanks to its advanced DFN2510 package and outstanding electrical performance.



1. Product Overview: "Static Guardian" for Low Voltage Applications



The SLESD3324P is an ESD protection diode designed specifically for circuits operating at 3.3V or lower. Its core function is to rapidly respond to ESD and transient overvoltage events by directing excess voltage to the ground, protecting subsequent circuits from damage. Featuring the DFN2510 package, it combines compact size with efficient heat dissipation, making it suitable for automated production and high-density PCB layouts—an ideal protection element for precision electronic devices.



2. Product Features: Six Key Parameters Build the Protective Barrier



1. Low Reverse Working Voltage (VRWM) of 3.3V

   Optimized for low-voltage circuits, the diode maintains a high impedance state during normal operation, avoiding interference with circuit performance.



2. High Breakdown Voltage (VBR min) of 4.2V

   A clear breakdown threshold ensures that when the voltage exceeds 4.2V, the diode rapidly conducts and forms a low-resistance path, safely dissipating the overvoltage.



3. Low Reverse Leakage Current (IR) of 1μA

   The leakage current under reverse voltage is extremely low, significantly reducing system power consumption and extending device battery life, particularly suitable for battery-powered scenarios.



4. Low Clamping Voltage (VC) of 10V

   In an ESD event, the diode can clamp the voltage to below 10V within nanoseconds, preventing damage to the downstream circuit from overvoltage.



5. Ultra-Low Junction Capacitance (CJ) of 0.4pF

   The extremely low junction capacitance has minimal impact on high-speed signal transmission, ensuring data integrity and signal stability, meeting the needs of high-speed interfaces like 5G and USB 3.0.



6. DFN2510 Package Advantages

   The larger DFN package allows for easier automated assembly and provides ample heat dissipation area, ensuring long-term stable operation even in high-temperature environments.



3. Product Advantages: A Comprehensive Breakthrough from Performance to Application



1. Efficient Static Protection

   The SLESD3324P features an extremely fast response time, enabling protection actions during the instant of electrostatic discharge to prevent circuit damage.



2. Low Power Consumption

   With a low leakage current of 1μA, the system’s power consumption is greatly reduced, improving device energy efficiency, especially in power-sensitive applications such as wearable devices.



3. High-Speed Signal Compatibility

   The ultra-low junction capacitance of 0.4pF makes it an ideal choice for protecting high-speed data transmission lines, such as HDMI and MIPI interfaces.



4. Stable and Reliable

   Subjected to rigorous environmental adaptability tests (e.g., high temperature, high humidity, and salt spray tests), the diode guarantees stable performance under harsh conditions.



5. Easy to Integrate

   The DFN2510 package supports standardized PCB layouts, simplifying the design process and improving production efficiency.



4. Application Areas: Covering Diverse Precision Electronics Scenarios



1. Mobile Communication Devices

   Key components such as touchscreens, cameras, and SIM card interfaces in smartphones and tablets require ESD protection. The SLESD3324P can effectively protect against static electricity and voltage fluctuations during charging.



2. Consumer Electronics

   For devices like high-definition audio equipment (e.g., TWS earphones), portable game consoles, and digital cameras, integrating this diode can enhance product reliability.



3. Medical Electronics

   Precision medical instruments, such as portable ultrasound machines and blood glucose meters, require high circuit stability. The low clamping voltage feature of the SLESD3324P prevents static interference that could cause measurement errors.



5. Usage Notes: Details That Determine Protection Effectiveness



1. Static Protection

   During handling and installation, operators should wear anti-static wristbands and use anti-static packaging materials to prevent diode failure due to electrostatic breakdown.



2. Correct Polarity Connection

   Strictly follow the product markings for the anode and cathode directions. Reverse connection may result in diode damage or circuit short-circuit.



3. Environmental Limitations

   Avoid use in extreme temperatures outside the -40°C to +125°C range, high humidity, or corrosive gas environments, as this may affect the product’s lifespan.



4. Storage Conditions

   Store in a dry (relative humidity <60%), cool (temperature <30°C), and well-ventilated environment, away from direct sunlight and chemical solvents.



5. Regular Inspection and Maintenance

   In critical applications, it is recommended to check the clamping voltage and leakage current parameters every 6 to 12 months to ensure the protection performance has not degraded.



Conclusion: Protecting Electronic Safety with Innovative Technology



The SLESD3324P ESD protection diode redefines the standards for static protection in precision electronic devices through its integration of low voltage, low leakage current, and ultra-low junction capacitance. Its DFN2510 package not only improves production efficiency but also supports the development of cutting-edge fields such as 5G, IoT, and Industry 4.0. In the future, Sako Micro (slkor) will continue to drive innovation, providing more efficient protection solutions for the global electronics industry.
