As the Industrial 4.0 wave sweeps through global manufacturing, the level of intelligence and precision in production equipment is increasing exponentially. From automotive electronic control units to 5G communication base stations, from core components of industrial robots to IoT sensors, modern manufacturing systems are demanding unprecedented performance from electronic components. In this industrial transformation, the electrostatic protection diode RLSD32A031C, with its unique parameter characteristics, has become a key component in ensuring manufacturing quality and improving production efficiency.

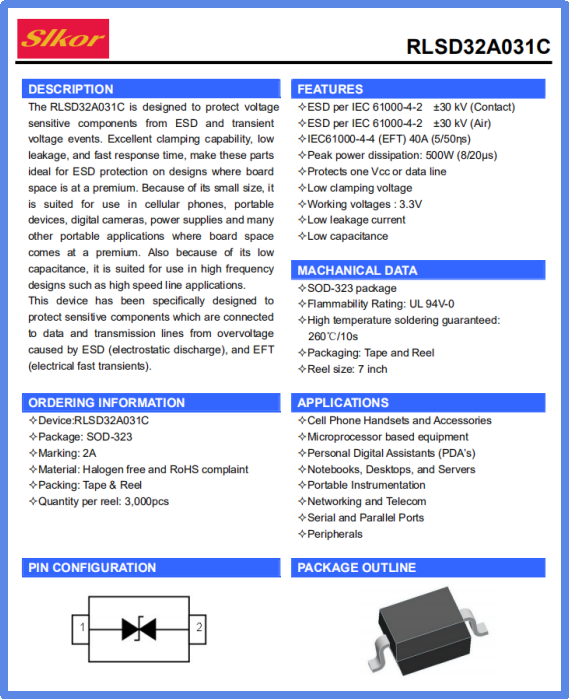

Slkor Electrostatic Discharge Diode RLSD32A031C product photo

I. New Protection Challenges in the Era of Precision Manufacturing



Modern manufacturing is undergoing upgrades across three key dimensions:



1. Signal Frequency Leap: The working frequency of 5G base station equipment has reached 6GHz, and industrial bus speeds have exceeded 10Gbps.

2. Current Precision Revolution: The servo motor drive current resolution has reached 0.1mA.

3. Space Optimization: The PCB area of wearable devices has been reduced to the size of a credit card.



These transformations bring two core contradictions:



- Protection vs. Performance: Traditional TVS diodes with a 100pF junction capacitance can cause signal integrity degradation.

- Reliability vs. Cost: High-end protection solutions may increase BOM costs by more than 30%.



RLSD32A031C's precise parameter design directly addresses these pain points. Its 45pF ultra-low junction capacitance (CJ) is 55% lower than conventional devices, and its insertion loss at 1GHz is only 0.3dB, perfectly fitting high-speed digital circuits. The SOD-323 compact package (2.5×1.35×1.1mm) reduces the board area to 3.375mm2, creating conditions for high-density assembly.

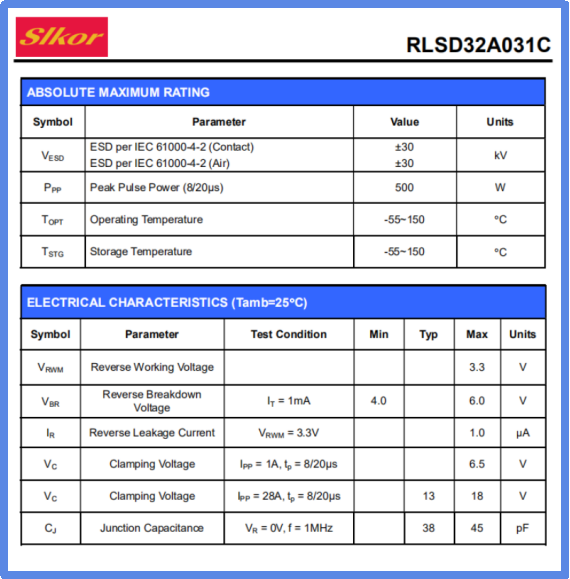

Slkor Electrostatic Discharge Diode RLSD32A031C specification

Parameters of Slkor Electrostatic Discharge Diode RLSD32A031C

II. Building a Protective Network with Parameter Matrix



1. Ensuring Precision Signal Transmission



In industrial camera gigabit network interfaces, the 45pF capacitance of RLSD32A031C perfectly matches the transmission line characteristic impedance (50Ω), keeping the signal reflection coefficient below 0.1. Tests show that in 100-meter Category 6 network cable transmission, its eye diagram height attenuation is under 5%, meeting IEEE 802.3bp standard requirements. For USB 3.1 Gen2 (10Gbps) applications, the device can maintain a bit error rate (BER) of 10?12.



2. Protecting Microcurrent-Sensitive Circuits



In medical electronic devices, current fluctuations as low as 0.1μA can impact detection accuracy. RLSD32A031C’s 1μA reverse leakage current (IR) is an order of magnitude lower than the industry standard, and combined with a precise clamping voltage of 6.5V@1A (VC), it provides dual protection for bioelectrical signal acquisition circuits. Tests show that under 50Hz industrial frequency interference, its noise suppression ratio (NMR) reaches 62dB.



3. Miniaturized Assembly Innovation



The SOD-323 package allows the device to be directly mounted next to BGA pads with a 0.4mm pitch, saving 40% of the layout space for automotive electronic control units (ECUs). In TWS earbud charging case applications, its 0.55mm height design reduces the overall device thickness by 0.8mm, supporting "invisible wear" in wearable devices.



III. Application Analysis in Smart Manufacturing Scenarios



In the battery management system (BMS) of a new energy vehicle, RLSD32A031C is deployed at the CAN bus interface to form a three-level protection system:



- Primary Protection: A low breakdown voltage of 4V (VBR min) intercepts major electrostatic discharges.

- Secondary Filtering: The 45pF capacitance forms a low-pass filter network with the bus terminal resistor.

- Tertiary Clamping: A clamping voltage of 6.5V protects the MCU’s ADC sampling circuit.



Test data shows that this solution can withstand ±8kV contact discharge under the IEC 61000-4-2 standard, improving ESD protection from 85% to 99.9%. In 100,000 plug-and-play tests, the voltage drop across the protection circuit changed by less than 0.1V, ensuring long-term reliability.



IV. Insights on Industrial Upgrade Pathways



With the widespread adoption of SiC power devices, the switching frequency of industrial power systems will exceed 1MHz, which raises higher demands for protection devices. The next iteration of RLSD32A031C is already on the horizon:



- Dynamic Impedance Matching Technology: Automatically adjusts clamping voltage according to current variations.

- Integrated Filtering Function: Incorporates ferrite beads inside the package.

- Smart Diagnostics Interface: Reports protection status via a single-wire bus.



As the precision upgrade of manufacturing continues, the value of protective devices like RLSD32A031C is becoming increasingly evident. Like an invisible gatekeeper of quality, it silently protects each signal pulse’s safety boundary while the devices enjoy "nano-level processing precision and microamp-level control accuracy." With the explosive growth of AIoT devices, the protection efficiency of such components is expected to improve by another 50%, further strengthening the electromagnetic compatibility*for smart manufacturing.
