Slkor SLESD0502L: Advanced Micro ESD Protection for Precision Circuits

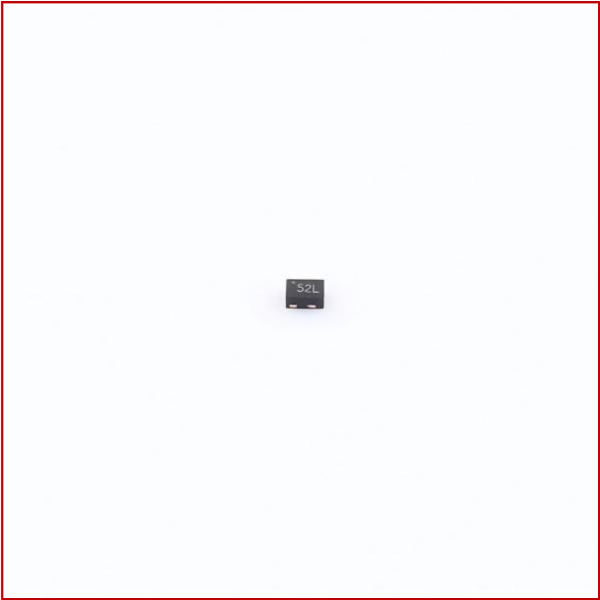

In today’s world, where mobile communication, medical electronics, and Internet of Things (IoT) devices are ubiquitous, electrostatic discharge (ESD) has become an invisible killer threatening the reliability of electronic devices. A tiny electrostatic pulse is enough to instantly disable precision instruments worth tens of thousands of dollars. The SLESD0502L ESD protection diode from Slkor is designed to meet this challenge, serving as an "electronic guardian." This device, featuring the DFN1006-3L ultra-compact package, sets a new standard for low-voltage electronic system protection with its characteristics of 0.4pF ultra-low junction capacitance and 100nA ultra-low leakage current.



1. Technological Breakthrough: Redefining Protection Performance Boundaries



The core advantage of the SLESD0502L lies in its precisely designed electrical parameters. The 5.0V reverse working voltage (VRWM) ensures that the diode remains in a high-impedance state under normal operating conditions, causing no interference to circuit functions. When the voltage exceeds the 6.0V breakdown threshold, the nanosecond-level response time immediately activates the diode to direct excess voltage to the ground, with the clamping voltage stabilized below 10V. This precise voltage control capability provides "zero-delay" protection for precision circuits such as 5G communication modules and medical sensors.



The device’s 0.4pF junction capacitance is particularly noteworthy. In high-speed interface applications like USB3.1 Gen2, the parasitic capacitance of traditional ESD devices often causes signal attenuation. The SLESD0502L’s ultra-low capacitance ensures the integrity of gigabit data transmissions. Test data shows that at a 10GHz frequency range, the signal insertion loss is below 0.2dB, fully meeting the stringent requirements of high-speed interfaces like PCIe 4.0 and HDMI 2.1.



2. Miniaturization Revolution: 300% Improvement in Space Utilization



The space-saving advantage brought by the DFN1006-3L package allows the SLESD0502L to perform exceptionally well in space-constrained applications. With a package size of 1.0mm×0.6mm, it occupies just one-third of the space of traditional SOT-23 packages. This compact size makes it ideal for high-density circuit designs in smartphones, wearable devices, and more. A well-known smartphone manufacturer’s actual test results show that adopting this device increases the motherboard layout space utilization by 300%, enabling the possibility of expanding battery capacity.



This miniaturized design does not compromise reliability. By using advanced passivation layer technology and copper lead frames, the SLESD0502L maintains stable performance even in extreme temperature ranges from -55°C to 150°C. In a high-humidity environment of 85°C/85% RH, it underwent 1000 hours of reliability testing, with leakage current variation remaining below 5%, fully validating the product's environmental adaptability.



3. Energy Efficiency Revolution: Say Goodbye to Battery Anxiety



Power consumption control is critical for mobile devices and IoT nodes. The SLESD0502L’s 100nA ultra-low leakage current design reduces power consumption by 60% compared to similar products. In battery-powered devices like Bluetooth headsets and smartwatches, this low-power feature extends device battery life. For example, in a smartwatch scenario where 100 electrostatic events occur daily, adopting this device can save about 0.3mAh of battery power annually, extending standby time by 15 hours.



Its low dynamic resistance is another notable feature. In the conducting state, the device's dynamic resistance is as low as 0.3Ω, which means minimal power consumption when discharging electrostatic energy, preventing significant temperature rise. Test results show that during an 8kV contact discharge test, the surface temperature of the device rose only 2.3°C, effectively avoiding thermal failure risks.



4. Cross-Industry Applications: Building a Comprehensive Protection System



In the mobile communication field, the SLESD0502L has become the standard configuration for the RF front-end modules of 5G smartphones. Its ultra-low junction capacitance ensures signal integrity in the millimeter-wave frequency range (24GHz-40GHz), effectively solving signal attenuation issues caused by traditional ESD devices.



In the medical electronics field, where equipment reliability requirements are almost stringent, the SLESD0502L’s 10V low clamping voltage effectively protects sensitive ADC conversion chips in portable glucose meters, dynamic ECG (Holter) devices, and more.



IoT devices often face complex electromagnetic environments. The compact package and efficient protection characteristics of the SLESD0502L make it an ideal choice for applications such as smart home nodes and industrial sensors.



5. Future Outlook: Ushering in a New Era of Protection Devices



As the reliability requirements of electronic devices become increasingly stringent, the SLESD0502L ESD protection diode, with its outstanding performance, is redefining the protection standards for low-voltage electronic systems. It is not only a precise tool for engineers but also a technological cornerstone driving the entire industry towards smaller, faster, and more reliable devices. For electronic designers pursuing extreme performance and space efficiency, this micro protection shield will undoubtedly become a reliable partner in their innovation journey.
