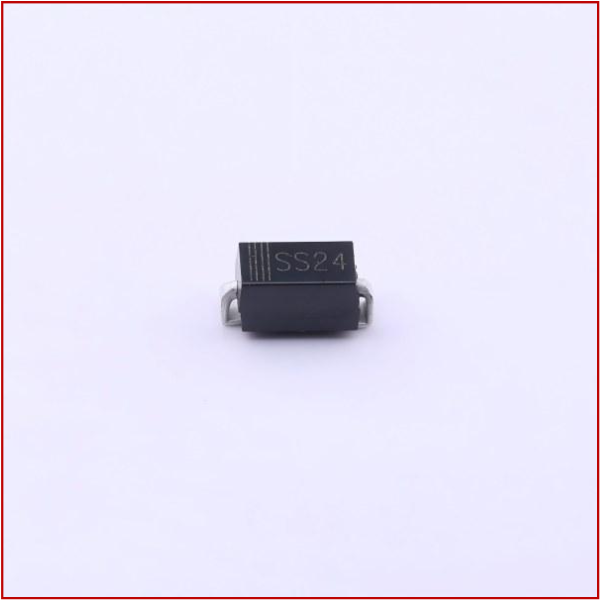

SS24 Schottky Power Rectifier: High Performance in a Tiny Package

In the world of modern electronics, efficiency and reliability are key drivers of performance. When it comes to rectifiers, the SS24 Surface Mount Schottky Power Rectifier stands out as a powerhouse of energy-saving potential and robust durability. Designed for seamless integration into surface-mounted applications, this component offers superior functionality with a focus on high-efficiency power conversion and long-term reliability.



Let’s dive deeper into the SS24's exceptional features and why it’s the go-to solution for a range of applications, from power supplies to voltage regulation.



Key Features That Set the SS24 Apart



Surface-Mount Ease for Streamlined Production

With surface-mount technology (SMT), the SS24 simplifies your manufacturing process by offering easy pick-and-place assembly. This efficiency minimizes handling time and reduces the risk of damage during installation, optimizing throughput and overall cost-effectiveness.



Unmatched Efficiency with Low Power Loss

At the core of the SS24 is its low power loss design. The rectifier's Schottky construction ensures minimal voltage drop, allowing for high efficiency in energy conversion. Less energy is wasted as heat, meaning your power systems run cooler and last longer, saving you money on cooling costs and enhancing overall system performance.



High Current Handling – Power When You Need It

Designed to handle significant current levels, the SS24 is built for demanding applications that require high current capability. Whether you're working with power supplies, motor control, or industrial electronics, this rectifier ensures you’ll never have to worry about power bottlenecks.



Low Forward Voltage (VF) for Better Efficiency

A hallmark of Schottky diodes is their low forward voltage (VF). The SS24 delivers an impressively low VF, which directly translates into higher efficiency and lower energy consumption in circuits. This makes it ideal for environments where minimizing power loss is crucial.



Surge Current Resistance

The SS24 can withstand high surge currents, which means it offers excellent protection in situations where brief power spikes are common. This feature is invaluable in ensuring the reliability and longevity of your devices, protecting them from potential damage due to power surges.



Built for Safety

Safety is a priority with the SS24. Its plastic casing is made from materials that meet the stringent Underwriters Laboratories (UL) 94V-0 flammability standards. This ensures that in the unlikely event of a fault, the SS24 won’t compromise the integrity of your devices or the safety of your environment.



High-Temperature Soldering for Versatility

The SS24 is capable of enduring high-temperature soldering processes (260°C for 10 seconds), which is crucial in modern manufacturing environments where high-precision soldering is the norm. This makes it a versatile choice across different production workflows.



Mechanical Data and Construction Excellence



Durable Plastic Case

The SS24 features a molded plastic case that is both compact and robust, offering protection against physical and environmental stressors. The material ensures durability while also providing sufficient heat dissipation for optimal performance.



Pure Tin Plated, Lead-Free Terminals

With pure tin plating on its terminals, the SS24 is not only environmentally friendly but also offers long-term reliability. The lead-free design complies with international RoHS standards, ensuring the component is safe for use in global markets while adhering to environmental regulations.



Polarity Clearly Marked for Easy Integration

The cathode band on the SS24 makes polarity identification easy, ensuring straightforward assembly and reducing the risk of installation errors. Whether you're assembling power supply units or voltage regulation circuits, quick and clear polarity identification accelerates the process.



Packaging for Convenience

Packaged on a 12mm tape per EIA STD RS-481, the SS24 is designed for ease of integration into automated pick-and-place systems. This packaging format ensures compatibility with industry-standard assembly lines, making it a reliable choice for mass production.



Perfect for a Wide Range of Applications



The SS24 isn’t just a one-trick pony. Its advanced design and robust features make it suitable for a variety of applications, including:



Power Supplies: From simple low-voltage power supplies to more complex multi-output systems, the SS24 handles the rectification with ease.

DC-DC Converters: Need efficient conversion in power-sensitive applications? The SS24 is your go-to rectifier for minimal power loss and improved performance.

Battery-Powered Devices: Whether for consumer electronics or industrial devices, the SS24 helps maximize battery life while minimizing waste heat.

Industrial Power Equipment: With its high surge current resistance, the SS24 is perfect for industrial power systems where reliability and efficiency are critical.

Voltage Regulators: For circuits that require tight voltage control, the SS24 ensures steady, efficient rectification with minimal power loss.



Why Choose the SS24?



In summary, the SS24 Surface Mount Schottky Power Rectifier is an indispensable component for anyone serious about efficiency and reliability in their power systems. It combines the best of both worlds: high-performance rectification with easy integration, ensuring your designs are both reliable and cost-effective. Whether you’re developing consumer electronics, industrial equipment, or power management systems, the SS24 offers a versatile, high-quality solution.



By choosing the SS24, you're not just opting for a rectifier—you're investing in a component that will deliver superior efficiency, enhanced safety, and long-term durability for your products.
