SD03 ESD Protection Diode: A Tiny Shield for a Safer Electronic World

In today’s world, where the wave of digitalization is sweeping across the globe, electronic devices have long evolved from being "luxuries" to "necessities." Smartphones in our hands, smart navigation systems in our cars, automated production lines in factories... these sophisticated devices are like the "nerve endings" of modern society, supporting everyday operations. However, behind these high-tech products, an invisible "silent killer" is quietly threatening their safety — electrostatic discharge (ESD). A casual touch or a dry environment can cause the electrostatic voltage to surge into the thousands of volts, instantly breaking down sensitive components and rendering the device inoperable. The SD03 ESD protection diode, launched by Slkor, is designed to counter this threat, building a "safety great wall" for the electronic world with "tiny power."



1. Shattering Expectations: The Hardcore Strength of a "Tiny" Component

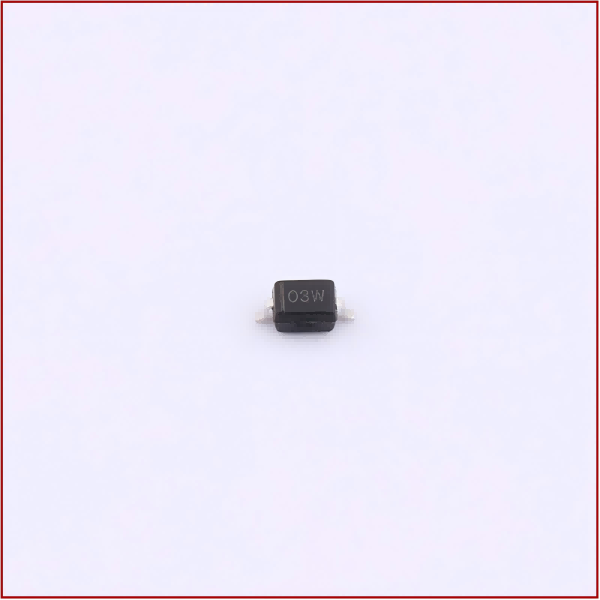

When people first encounter the SD03, it's hard to imagine that this component, no larger than a grain of rice, could carry such an important mission. It adopts an SOD-323 package, smaller than a rice grain, yet capable of "turning the tide" at critical moments. Its core design logic is "instant response": For modern electronic devices that typically use 3.3V low-voltage circuits, the SD03 sets its reverse working voltage (VRWM) at 3.3V, ensuring that it remains "invisible" under normal operating conditions and does not interfere with circuit operation. However, when the electrostatic voltage exceeds 4V (breakdown voltage VBR min), the diode "awakens" instantly, conducting in nanoseconds to direct the electrostatic energy into the ground. It also clamps the remaining voltage at 14V (clamping voltage VC), preventing further damage to downstream circuits. This "responsive flexibility" makes the SD03 the "static enemy" in the low-voltage domain.



2. Performance Beast: Steady as a Rock in Extreme Environments

Electronic devices are used in various environments, from the -40°C polar research stations to the 85°C heat in car engine compartments. The SD03 must withstand the test of both "ice and fire." Test data shows that in the extreme temperature range of -55°C to 150°C, its electrical parameters fluctuate by no more than 5%, and the leakage current (IR) remains stable within 40μA. This "rock-solid" performance stems from Slkor's deep research into material science: By optimizing semiconductor doping processes, the SD03’s PN junction can maintain a clear depletion layer structure even at high temperatures, effectively suppressing thermal runaway. Its unique passivation layer design also enables it to resist moisture erosion in high-humidity environments, preventing leakage risks. Even more impressive is that, despite its junction capacitance (CJ) of 450pF, the SD03 suffers almost no loss in low-frequency signal transmission (below 1MHz), thanks to special frequency compensation technology, making it perfect for industrial control, automotive electronics, and other scenarios with stringent signal integrity requirements.



3. A Versatile Player: From Consumer Electronics to Aerospace

The SD03 is deployed across various fields globally. In consumer electronics, it protects the Type-C interface of smartphones and TWS earphones, ensuring users don't have to worry about electrostatic discharge when plugging and unplugging charging cables. In automotive electronics, it serves as the "safety sentinel" for in-car infotainment systems, ensuring system stability even when passengers frequently touch screens in dry winter conditions. In industrial automation, the SD03 provides 24/7 protection for PLC controllers and sensor networks, preventing factory shutdowns due to electrostatic events. In aerospace, its radiation-resistant version has passed NASA standards, becoming the "space shield" for satellite communication equipment. This "cross-border versatility" is a result of the SD03's balance between "universality" and "customization": The standard version meets 90% of conventional needs, and by adjusting packaging and optimizing electrical parameters, it can quickly adapt to specific scenarios, becoming an "essential tool" in engineers’ hands.



Conclusion: Protecting Innovation from the "Tiny" Start

Throughout the history of science and technology, many disruptive breakthroughs have originated from a relentless pursuit of the "tiny." The SD03 ESD protection diode exemplifies this: It may not have a flashy appearance, but it guards electronic devices worth billions with nano-level precision. It does not directly create new functionalities, but it allows countless innovative ideas to take root securely. From the lab to the production line, from Earth to space, the SD03 proves that true technology often resides in those unremarkable details. Choosing the SD03 is choosing to add an "invisible insurance" for innovation, enabling electronic evolution to continue safely.
