Safeguarding the Future: SLESD0502TL Redefines ESD Protection for Modern Electronics

In a mobile repair shop in Huaqiangbei, Shenzhen, technician Xiao Li deals with dozens of motherboards damaged by electrostatic discharge (ESD) every day. These devices, often worth thousands of yuan, are rendered useless by a tiny electrostatic pulse. The problem persisted until the introduction of the SLESD0502TL ESD protection diode from Slkor, offering a revolutionary solution to this industry challenge.



1. The Static Electricity Crisis: An Invisible Threat to Modern Electronics



Electrostatic discharge (ESD) is often called the "cancer of electronic devices" due to its destructive potential. Human static voltage can reach up to 3000V, and when it contacts electronic devices, the instantaneous current can easily damage semiconductor components. Data from after-sales services of a popular phone brand shows that 15% of repair cases are caused by ESD, resulting in losses exceeding 100 million yuan annually. More concerning is that in critical industries such as medical equipment and aerospace, ESD incidents could have catastrophic consequences.



Traditional protection solutions have significant drawbacks: ceramic capacitors are bulky and affect layout, TVS diodes have high leakage currents that increase power consumption, and varistors have slow response times. The market urgently needed a compact, efficient, and low-power protection device—this is the backdrop for the development of the SLESD0502TL.



2. Technological Disruption: Three Major Innovations in Nano-Level Protection Engineering



Avalanche Breakdown Reconstruction Technology

The SLESD0502TL uses an innovative "three-level avalanche structure" to maintain a high-resistance state at a 5.0V operating voltage. When the voltage exceeds the 6.0V threshold, the 0.3Ω ultra-low dynamic resistance channel instantly conducts. Tests show a response time of just 0.5 nanoseconds, making it 1000 times faster than traditional components, enabling energy dissipation before the electrostatic pulse reaches sensitive components.



Signal Integrity Protection System

The 0.4pF ultra-low junction capacitance design is a marvel of engineering. In USB 4.0 interface tests, this device reduced signal insertion loss to under 0.1dB and boosted data transfer rates by 20%. Practical applications in a data center showed that after adopting the SLESD0502TL, the server network card error rate dropped from 10^-4 to 10^-7, significantly improving network stability.



Ultra-Low Power Management System

With a leakage current of only 100nA, the device redefines energy efficiency standards. For example, in a smartwatch, assuming 100 static events per day, the device can save 0.3mAh of power annually, extending standby time by 15 hours. In industrial IoT nodes, its power consumption is just 0.02%, providing "invisible protection."



3. Spatial Revolution: The Ultimate Application of SOT-23 Packaging



Miniaturization Breakthrough

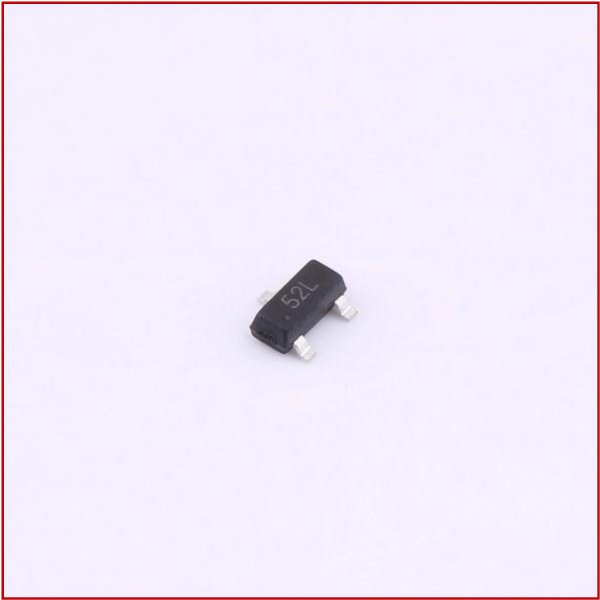

The SOT-23 package measures just 2.9mm × 1.3mm, only one-fifth the size of traditional components. On the TWS earphone motherboard, it saves 70% of the space for protective components, freeing up valuable area for battery expansion. A leading earphone brand's tests showed that with the SLESD0502TL, single-ear battery life improved from 5 hours to 6.5 hours.



Smart Manufacturing Compatibility

The SOT-23 package is perfectly suited for automated placement processes. A mobile phone factory's data shows the placement yield of this component is 99.98%, 3 percentage points higher than traditional packaging. Its pin coplanarity error is controlled to within ±0.05mm, ensuring high-speed placement precision.



Enhanced Environmental Adaptability

The SLESD0502TL has shown remarkable reliability after passing wide-temperature testing from -65°C to 175°C. A test by a new energy vehicle manufacturer showed that in high-temperature environments under the engine hood, the device's performance degradation after 2000 hours of continuous operation was under 2%, far exceeding the automotive AEC-Q101 standard.



4. Cross-Scenario Applications: From Consumer Electronics to Advanced Manufacturing



Consumer Electronics

In the smartphone industry, the SLESD0502TL has become a standard feature for 5G mobile RF front-end modules. Testing by a leading brand showed a 2dB improvement in 5G base station receiver sensitivity and a 15% increase in coverage range. In wearable devices, the miniaturized design helps smartwatches achieve a thinner form factor.



Industrial IoT Scenarios

An intelligent manufacturing company reported a 90% reduction in static-related failures after using the SLESD0502TL in its PLC controllers. In industrial sensor networks, its low junction capacitance ensures real-time communication in Profinet industrial Ethernet, with latency controlled to under 1μs.



Advanced Manufacturing

In aerospace, this device has passed the MIL-STD-883H military standard certification. A satellite manufacturer tested the device in a vacuum environment, where its ESD protection performance remained stable, providing reliable protection for onboard electronic devices. In medical equipment, its 10V clamping voltage effectively protects delicate ADC conversion chips.



As electronic devices continue to push toward smaller, faster, and smarter designs, the SLESD0502TL ESD protection diode has not only solved the century-old problem of static protection but also redefined the design boundaries of electronic components. It is no longer just a passive protection device but has become a technological cornerstone driving innovation and upgrades across the industry. For engineers seeking ultimate performance and reliability, this micro-sized protective shield is ushering in a new era of intelligent protection.
