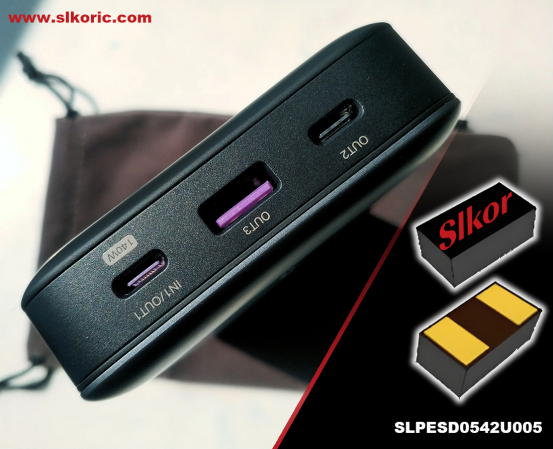

【SLKOR semiconductor】LPESD0542U005: Ultra-Fast ESD Defense for Next-Gen USB Type-C Ports

As data transfer enters the era of ultra-high speeds, the USB Type-C interface has become a core hub for consumer electronics, computing devices, and automotive electronics, thanks to its powerful reversible plug convenience, high-power charging capabilities, and incredible data transfer rates (such as USB4’s 40Gbps). However, these high-frequency, high-speed features make the interface highly vulnerable, with electrostatic discharge (ESD) pulses of thousands of volts potentially damaging sensitive internal chips. Innovators in the field of electronic protection devices continue to push technological boundaries, introducing the SLPESD0542U005 ultra-low capacitance ESD protection diode, designed specifically for the demanding environment of high-speed USB Type-C interfaces, creating an invisible yet strong [敏感词].



Precision Protection: Performance Parameters Analysis



The core value of the SLPESD0542U005 is evident in its exceptional electrical parameters:

Ultra-Low Junction Capacitance (CJ = 0.05 pF): This is the cornerstone of its role as a "guardian" for high-speed interfaces. Such a tiny capacitance value ensures negligible signal attenuation and distortion for high-speed differential signals (such as USB 3.2/4, DisplayPort Alt Mode), guaranteeing smooth data transfer at 10Gbps or even 40Gbps. This ensures the integrity of high-definition video and large file transfers.

Precise Voltage Protection (VRWM = 5V, VC = 40V): The 5V operating voltage perfectly matches the VBUS and data line levels of USB Type-C. When exposed to severe ESD shocks (such as an 8kV human-body-model HBM contact discharge), it can clamp the threatening voltage to a safe level of 40V in nanoseconds, providing critical protection for core processors, USB controllers, and PHY chips.

Optimal Packaging and Leakage Control (0402, IR = 10nA): The micro 0402 package greatly saves precious PCB space, especially suitable for the compact layout requirements of Type-C interfaces. The 10nA ultra-low reverse leakage current prevents energy loss and potential interference with sensitive circuits, making it ideal for battery-powered portable devices.



Why Does USB Type-C Need SLPESD0542U005?



The openness and high-frequency nature of the USB Type-C interface make it particularly vulnerable to ESD attacks:

High-Frequency Signal Vulnerability: High-speed data lines have stringent impedance matching and signal integrity requirements. Traditional high-capacitance ESD devices significantly degrade signal quality, leading to bit errors.

Physical Exposure Risks: As a key connection point between devices and the external world, the metal contacts of the interface are prone to accumulating and introducing static electricity during insertion and removal.

System-Level Cascade Damage Threat: A single successful ESD breakdown could damage multiple expensive core components along the circuit path, causing system failure.



The SLPESD0542U005, with its 0.05pF "invisible" characteristic, acts like a nearly undetectable protection switch embedded in the data line. It quietly lies in the circuit, maintaining a high degree of "transparency" to normal operating signals. Upon detecting a nanosecond-level high-voltage ESD spike, its internal PN junction instantly avalanche breaks down, forming a low-resistance discharge path that rapidly channels the destructive energy to the ground (GND). Its superior dynamic resistance characteristics ensure fast clamping response, with the 40V VC parameter providing a clear safety voltage margin for subsequent chips.



Key Considerations for Engineering Implementation



In circuit design, to maximize the protective effectiveness of the SLPESD0542U005:

Prioritize Layout: It should be placed immediately after the Type-C connector signal pins and as close as possible to the pin entry, to intercept external ESD threats at the first instance, creating a "protection-first, processing-later" topology.

Low-Impedance Grounding: Use short and wide traces to connect its ground pin to a clean PCB reference ground plane, ensuring efficient discharge of ESD energy.

Multi-Line Collaborative Protection: For Type-C interfaces' multiple high-speed differential lines (D+/D-, TX/RX), CC, SBU, etc., each vulnerable line should be equipped with an independent protection diode, forming an all-around [敏感词] network.



Conclusion



In an era where data transfer speeds are continually breaking records and device interconnectivity is increasingly tight, the stability and safety of interfaces form the foundation of user experience. The SLPESD0542U005 ESD protection diode, with its groundbreaking 0.05pF ultra-low junction capacitance, reliable 40V clamping capability, and the extreme miniaturization of its 0402 package, offers near-perfect electrostatic protection for high-speed USB Type-C and various cutting-edge data interfaces. It represents the cutting-edge achievement of electronic protection devices in overcoming high-frequency, high-density design challenges and is a strategic component for engineers to combat ESD, ensuring device reliability and data integrity. Choosing the SLPESD0542U005 is not just adding a safety barrier to your interface but also making an investment in the stability and security of the future of high-speed connectivity.
