【SLKOR semiconductor】Overcoming Supply Chain Challenges: SD12C as an Alternative to Brightking SDD32C12L01



【SLKOR semiconductor】Overcoming Supply Chain Challenges: SD12C as an Alternative to Brightking SDD32C12L01

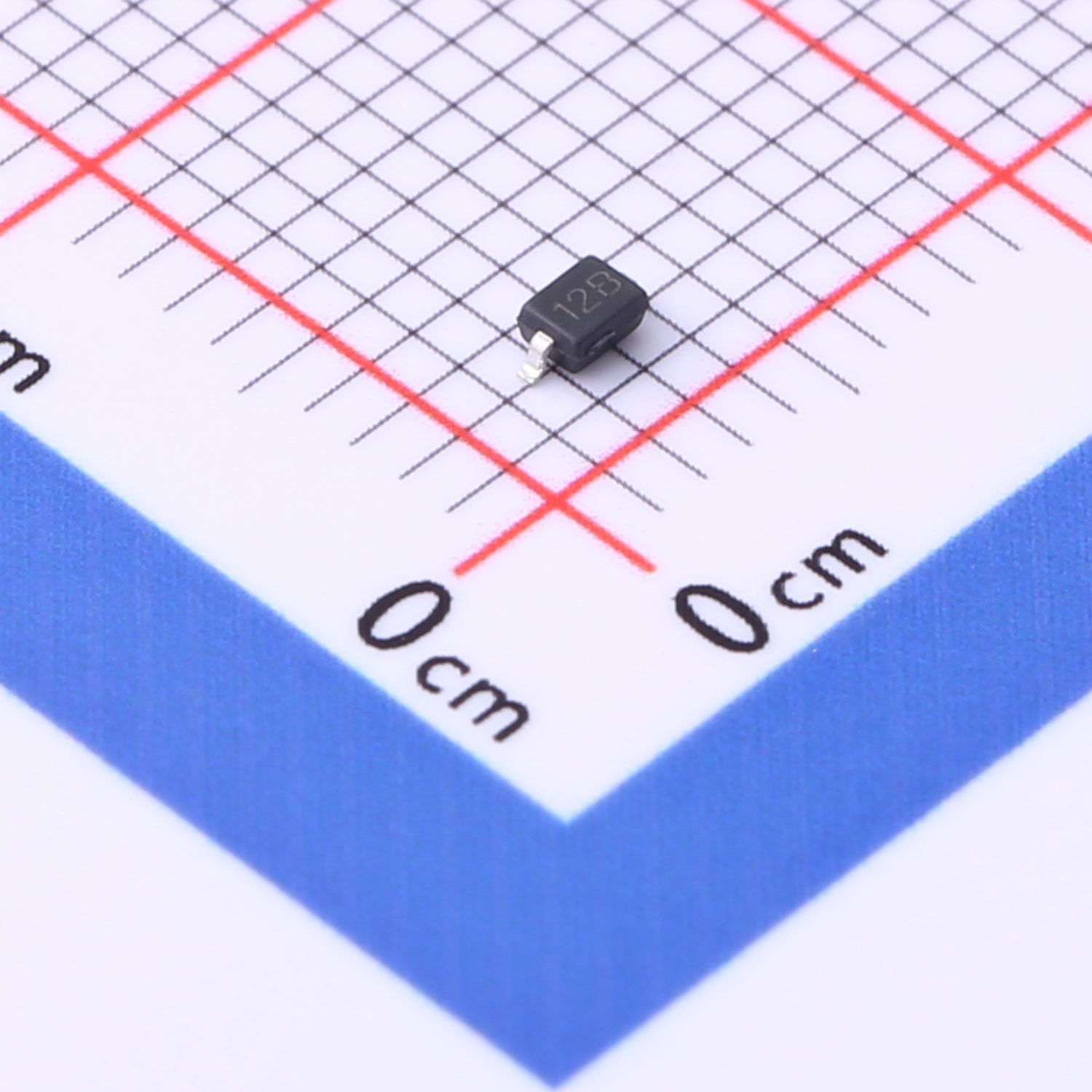

In modern electronics design, effective electrostatic discharge (ESD) protection has become critical for ensuring device reliability. The SD12C bi-directional ESD protection diode emerges as an optimal solution, combining ultra-low clamping voltage with robust surge protection in the space-efficient SOD-323 package.



Description

The SD12C is designed to protect voltage sensitive components from ESD and transient events. Excellent clamping capability, low leakage, and fast response time, make this part ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.

Features

● Peak Power − 350 W (8  20 s)

● Low Leakage

● Low Clamping Voltage

● Small Package for use in Portable Electronics

● Meets IEC61000−4−2 Level 4

● Meets IEC6100−4−4 Level 4

● Meets 16 kV Human Body Model ESD Requirements

● These Devices are Pb−Free and are RoHS Compliant

● 350 Watts Peak Pulse Power per (tp=8/20us)

● Protects one l/O line (bidirectional)

● Working voltages 3V, 5, 8V, 12V, 15V, 18V, 24V, 36V

Applications

● Digital Cameras

● MP3 players

● Portable Devices

● Cell Phone Handsets and Accessones

● Microprocessor based equipment

● Personal Digital Assistants (PDA's)

● Notebooks, Desktops, and Servers

● Portable Instrumentation

● Networking and Telecom

● Serial and Parallel Ports.

● Peripher als

Mechanical Data

● SOD-323 package

● Flammability Rating: UL 94V-0

● Packaging: Tape and Reel

● High temperature soldering guaranted: 260 C/10s

● Reel size: 7inch

● Quantity per reel: 3,000pcs


About Slkor

With an elite team from prestigious Chinese Tsinghua University and Korean Seoul Yonsei University, Shenzhen Slkor Micro Semicon Co., Ltd. is dedicated to the third generation semiconductor SiC power devices and conventional semiconductor devices. We are strong on the relevant methodologies, new materials, new technologies and new products. Our products cover discrete devices and ICs,  diodes, transistors, power devices, power management chips, and analogue chips etc. Under the strong leadership of Mr. Song Shiqiang, the CEO of Slkor, starts from an IP design house, Slkor is now a national high-tech enterprise covering the R&D, production and sales service of semiconductor devices. Slkor provides quality domestic equivalents of semiconductor from major international players. For prompt services, Slkor has two flagship stores in the world famous hardware valley Shenzhen Huaqiangbei.
