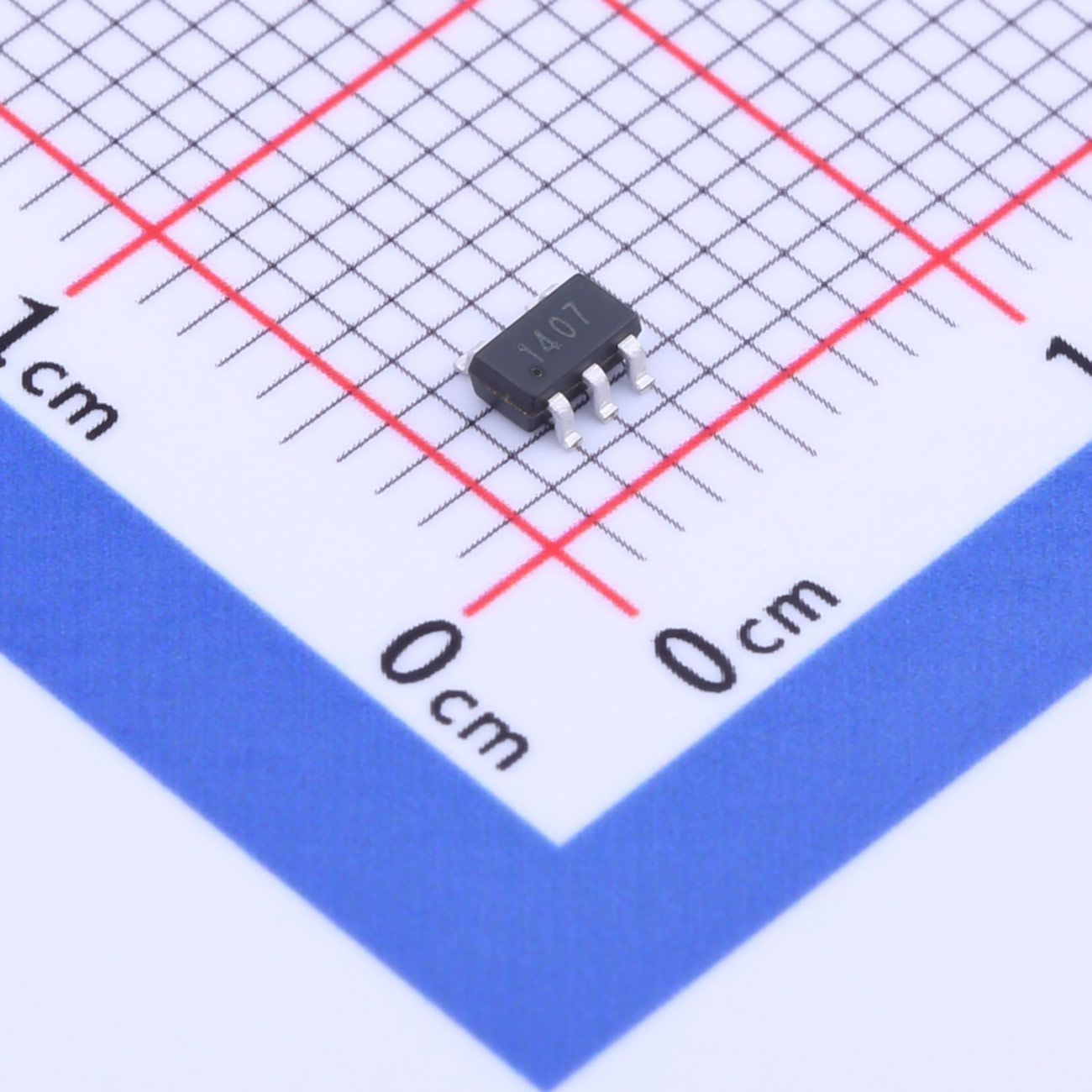

【SLKOR semiconductor】SL27517 SOT-23-5 Gate Driver, Pin-to-Pin Compatible with TI UCC27517DBVR
SL27517 24V 4A Sourcing Current and Sinking Current Single-channel Driver.
Description
The SL27517 is a single-channel 4A high-speed low-side gate driver that efficiently and safely drives MOSFETs, IGBTs, and emerging wide-bandgap power devices. With characteristics of low propagation delay and compact SOT-23, it can achieve the MOSFET switching frequency of hundreds ofkHz.The chip is applicable to synchronous rectification driving of servers and communication power supply. In this condition,the dead time of the synchronous tube MOSFET leads to direct influence on efficiency of the converter. The 4.5V to 20V wide ranges VDD supply voltage can drive MOSFET or GaN power devices effectively.The integrated UVLO protective function can ensure the output low level in abnormal conditions. The -5V to 24V independent input pin voltage ranges can ensure stable working in condition ofover-shoot caused by stray inductance.The voltage threshold value of the input pin is compatible to the TTL level input.
Features
● 5-pin SOT-23 package
● 4A peak sourcing current and sinking current
● Wide-range VDD power supply as high as 24V
● VDD under-voltage protection,4.5V to 20V recommended working voltage
● Dual-input design with both configuration of positive input and that ofinverted input.The not used input pin can be used for enabling or disenabling control.
● Negative voltage input as low as-5V
● Compatible to TTL and CMOS input level
● Lo w propagation delay (with the typical value lower than 20ns)
● Output low le vel during input floating
● Working temperature ranges of -40C to 125C
Applications
● Switching power supply
● Motor control
● AC/DC and DC/DC converter
● Server and rectifier for communication equipment
● EV/HEV inverter and DC/DC convertor
● PV voltage rise and inverter
● UPS
● Applied to emerging broad-band gap power element driver
