【SLKOR semiconductor】Optimizing Electronic Designs with the 74HC595D Shift Register
Product Overview.

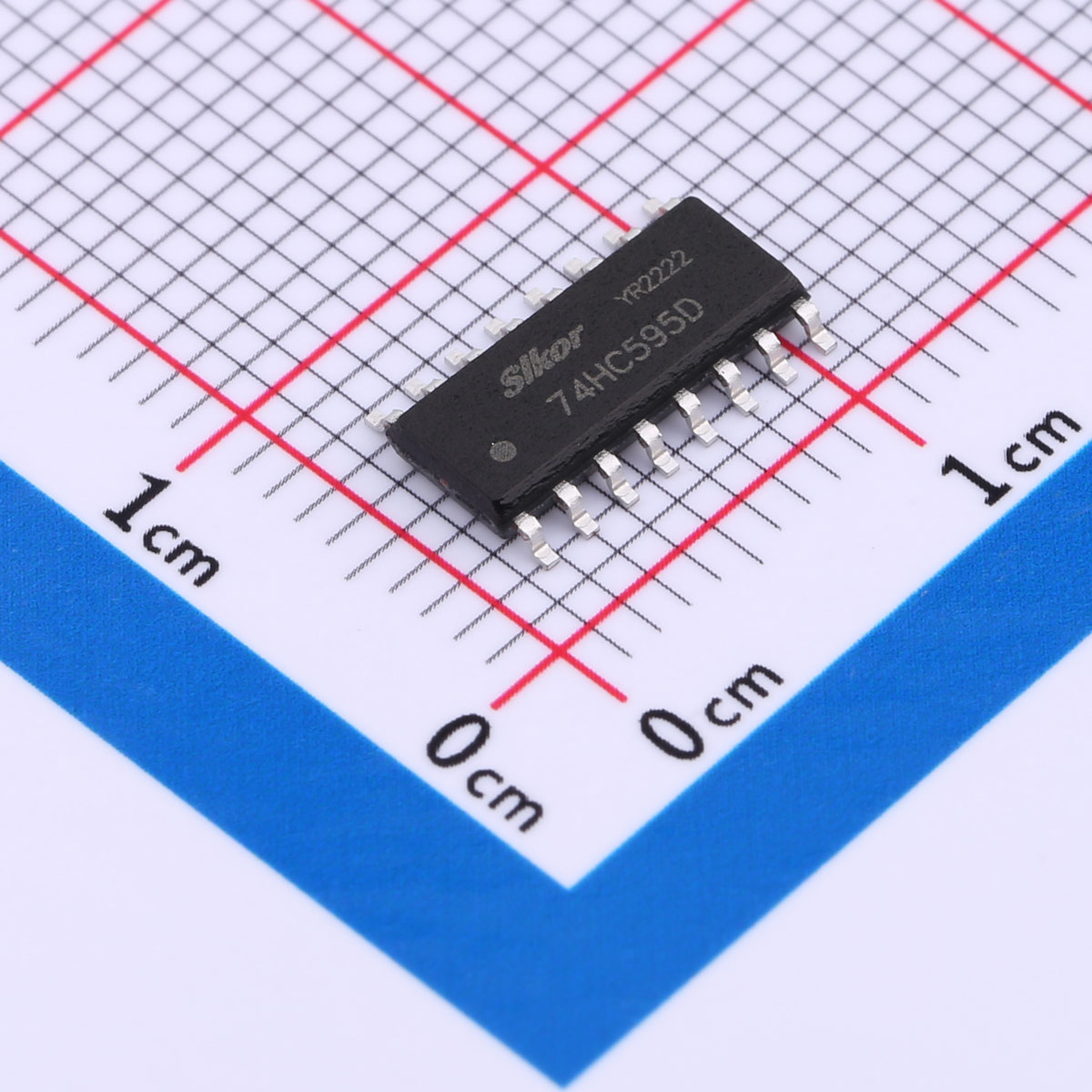

The 74HC595D is an integrated circuit chip belonging to the 74HC logic series. It functions as an 8-bit shift register, allowing control of 8 output ports through serial input and parallel output. Widely used in digital circuit design, it effectively expands the output port count of microcontrollers. Key features include high-speed operation, low power consumption, a straightforward serial data input interface, and reliable parallel output functionality.
The 74HC595D is commonly applied in LED displays, digital tube drivers, relay drivers, and other applications, offering an economical and efficient solution for managing multiple output signals.
Product Features.
1. Wide supply voltage range: Supports [sensitive word] 7.0V supply voltage for a wide range of circuits.
2. High Temperature Tolerance: With a storage temperature tolerance of up to 150°C, it is suitable for a wide range of environments.
3. Output Current Capacity: Can provide up to ±25mA output current.
4. Low Power Consumption: Total power consumption is only 500mW, which contributes to energy saving and battery life extension.
Application Areas: Digital Circuit Design
- Digital circuit design
- Shift Registers
- Data storage and shift operations
